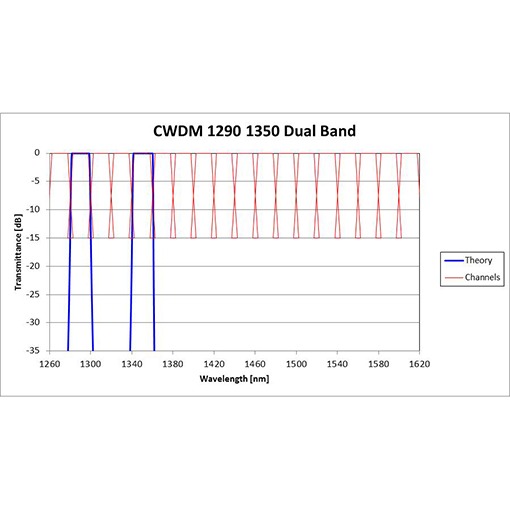

CWDM 1290 1350 Dual Band
Get A Quote with Your Custom Specs
Description
Product Specifications:
Optical Specifications
Filter Name
1290/1350 Dual Band
Channel Spacing [nm]
20
Angle of Incidence [degrees]
1.8
Operating Wavelength Range [nm]
1260 to 1620
Pass Band Ripple [dB]
<0.2
Pass Band Range
1282.5-1297.5; 1342.5-1357.5;
Peak Insertion Loss within Pass Band [dB]
< 0.2
Reflection Band Wavelength Range [nm]
1260.0-1277.5; 1302.5-1337.5;1362.5-1620
Reflectance Max Insertion Loss [dB]
< 0.2
Adjacent Channel Isolation [dB]
> 30
Reflect Channel Isolation [dB]
> 15
AR on Back Surface [%R]
< 0.2
Polarization Dependent Loss (PDL) [dB]
< 0.1
Polarization Mode Dispersion (PMD) [ps]
< 0.1
Temperature Coefficient [pm/deg C]
< 2
Operating Temperature Range [deg C]
-40 to +85
Storage Temperature Range [deg C]
-40 to +85
Physical Specifications
Part Size
Width [mm]
Length [mm]
Thickness [mm]
1.4 (+/- 0.1)
1.4 (+/- 0.1)
1.0 (+/- 0.2)
Surface Quality
60/40
Wedge Angle [degs]
0 to 0.5
Reliability
Environmental Testing
Telcordia GR1221
Mechanical Durability
Telcordia GR1221
SKU:
ZZ000732
Categories:
Coarse Wavelength Division Multiplexing Dual Band
,
CWDM Filters
,
Multi Band WDM Filters
,
Telecom Filters
