OPTICAL FILTERS FOR LiDAR LASER SENSORS

Optical Filters for Drones with LiDAR LASER SENSORS-Iridian.ca

Airborne laser scanning is a rapid, highly accurate and efficient method of capturing 3D data of large areas, such as agricultural or forestry sites, urban areas, and industrial plants. LiDAR (laser detection and ranging) can provide a point cloud of data that precisely describes the position and velocity of objects in the field of view of the system through analytical methods such as time-of-flight or coherence.

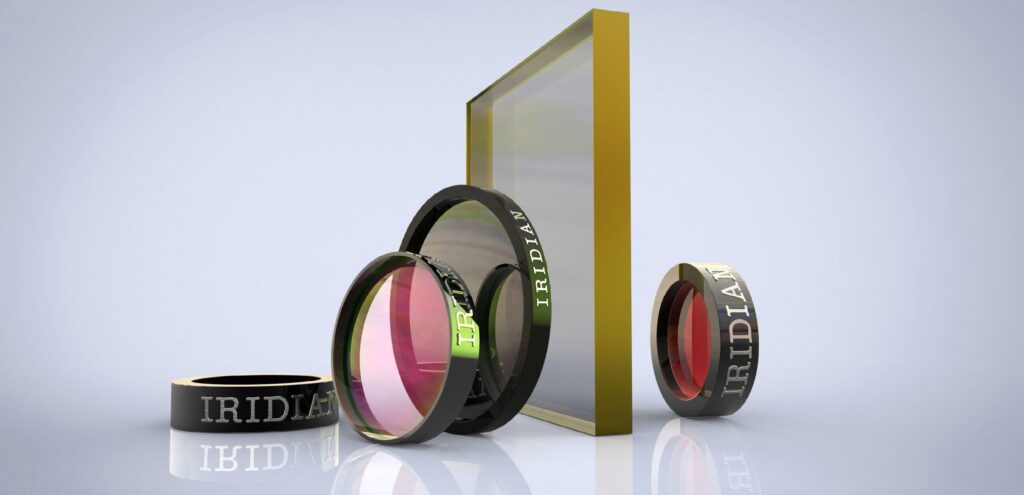

Optical Filters for LiDAR LASER SENSORS - Iridian.ca

LiDAR laser sensor systems work with common laser wavelengths including 532nm, 905nm, 1064nm and 1550nm. Regardless of the wavelength employed, Iridian provides customized optical filters for LiDAR sensor applications providing “More Signal, with Less Background”, from design and manufacture of initial prototypes through to high volume production in our ISO9001:2015 certified Canadian operation.

905nm BPF filter Chart - Iridian.ca

Iridian optical filters for LiDAR sensors offer high performance characteristics:

  • High transmission at the laser wavelength (>95%)
  • Narrow bandwidths (<1nm to 20+ nm dependent on the system requirements)
  • Deep blocking (OD 4-6 over detector range)
  • Highly stable, environmentally robust and reliable
  • Wider angle of incidence range (AOI) 0-15 degree
  • Low cost, high volume manufacturing capabilities

To learn more about LiDAR and Optical Filters, please refer to our white paper on this topic.

Please contact our sales team to discuss a solution to your needs for LIDAR optical filters or coatings.
